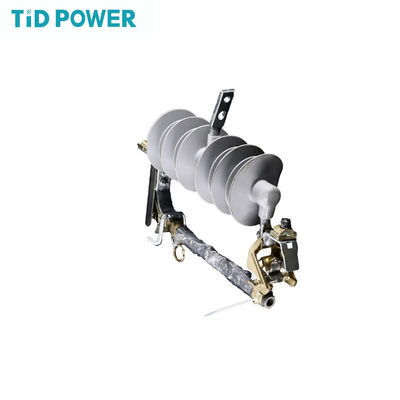

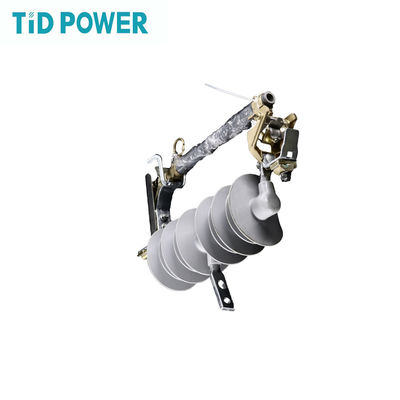

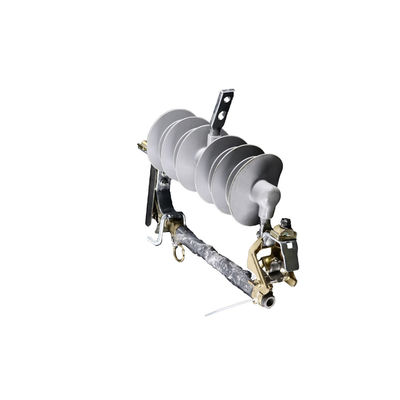

HRW5-35kV Light Weight Fuse Cut Out / Electrical Cut Out Fuse For High Voltage
| Place of Origin | CN;SHA |
|---|---|
| Brand Name | TID POWER |
| Certification | ISO9001 |
| Model Number | HRW5-35 |
| Minimum Order Quantity | 100 Pieces |
| Price | Negotiate |
| Packaging Details | Suitable packing for export: Cartons+Wooden cases+Pallets+Wrapping Film |
| Payment Terms | L/C ,T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Rated Current | 100A, 200A | Weight | Light Weight |
|---|---|---|---|
| Color | Grey Or Customized | ||
| High Light | Light Weight Fuse Cut Out,Fuse Cut Out Ip20,Ip20 Electrical Cut Out Fuse |
||
Product Description
HRW5-35kV Light Weight Fuse Cut Out / Electrical Cut Out Fuse For High Voltage
Product Description of HRW5-35kV Light Weight Fuse Cut Out / Electrical Cut Out Fuse For High voltage:
Cut-out fuse is made of insulating base, live and fixed contact and fuse tube. Fixed contact installed on both sides of insulating base, and live contact installed on both sides offuse tube, which is made of inner arc-quenching tube and out bakelite paper tube or epoxy-glass fiber fabric tube. Load-off cutout fuse is used for breaking& making load current with adding spring auxiliary contacts and arc-quenching cover. When cutoutfuse under nomal working condition, fuse tube forms close location with help of tight for fuse link. When any faults come out in system, fault current make fuse link melt promptly, and form arcing, arc-quenching tube heated by arc,decompose lot of gas, produce great pressure inside of tu be, and blow vertically in high strength, the electric arc would be lengthened and quenched quickly. After melting of fuse link, fixed contact below turn down due to lost of ten sion, itmakes locking mechanism to release fuse tube to fall down,it forms obvious breaking off location. When necessary to pul-off load, unhinge contact with insulating link, live and fixed contacts are still connected, to pull contacts continuous with insulating link, auxiliary switch also would be apart, it make electric arc between auxiliary switches, arc would be lengthened in narrow slot of arc-quenching cover, which produce gas at same time, to quench the arc when current over zero.
TID POWER's Fuse Cut Out is a high speed fuses with superior performance and reliable quality. It is designed with a creepage distance of 400mm, which makes it suitable for a variety of applications. It can be shipped from Shanghai or other ports in China. The Fuse Cut Out also comes in Grey color, but can be customized to meet your needs. It has a rated short-time power rated voltage of 35kV, so you can be sure of its reliability and safety. With TID POWER's Fuse Cut Out, you can be sure of a high quality, reliable, and safe product.
Features HPRWG5-35kV Composite Fuse Cut Out / High Voltage Protection Electrical Fuse Cutout:
- Product Name: Fuse Cut Out
- Auto Blade Fuses for Reliable Operation
- Rated Current: 100A, 200A
- Fuse Cutout for Safe and Durable Performance
- Light Weight Design: Light Weight
Technical Parameters of HPRWG5-35kV Composite Fuse Cut Out High Voltage Protection Electrical Fuse Cutout:
| Product Model | HRW5-35/100 | HRW5-35/200 | |
| Rated Voltage(kV) | 35 | 35 | |
| Rated Current (A) | 100 | 200 | |
| 3-phase breaking capacity (VA) | Up limit | 400 | 800 |
| Down Limit | 10 | 30 | |
| P.F.Dry Withstand Voltage (kV) | 185 | 185 | |
| P.F.Wet Withstand Voltage (kV) | 60 | 60 | |
| Allowed temperature rise except fuse tube live parts | 60 | 60 | |
