0.5kV Outdoor disconnet switch

Product Description of HGW2- 0.5 outdoor disconnet switch

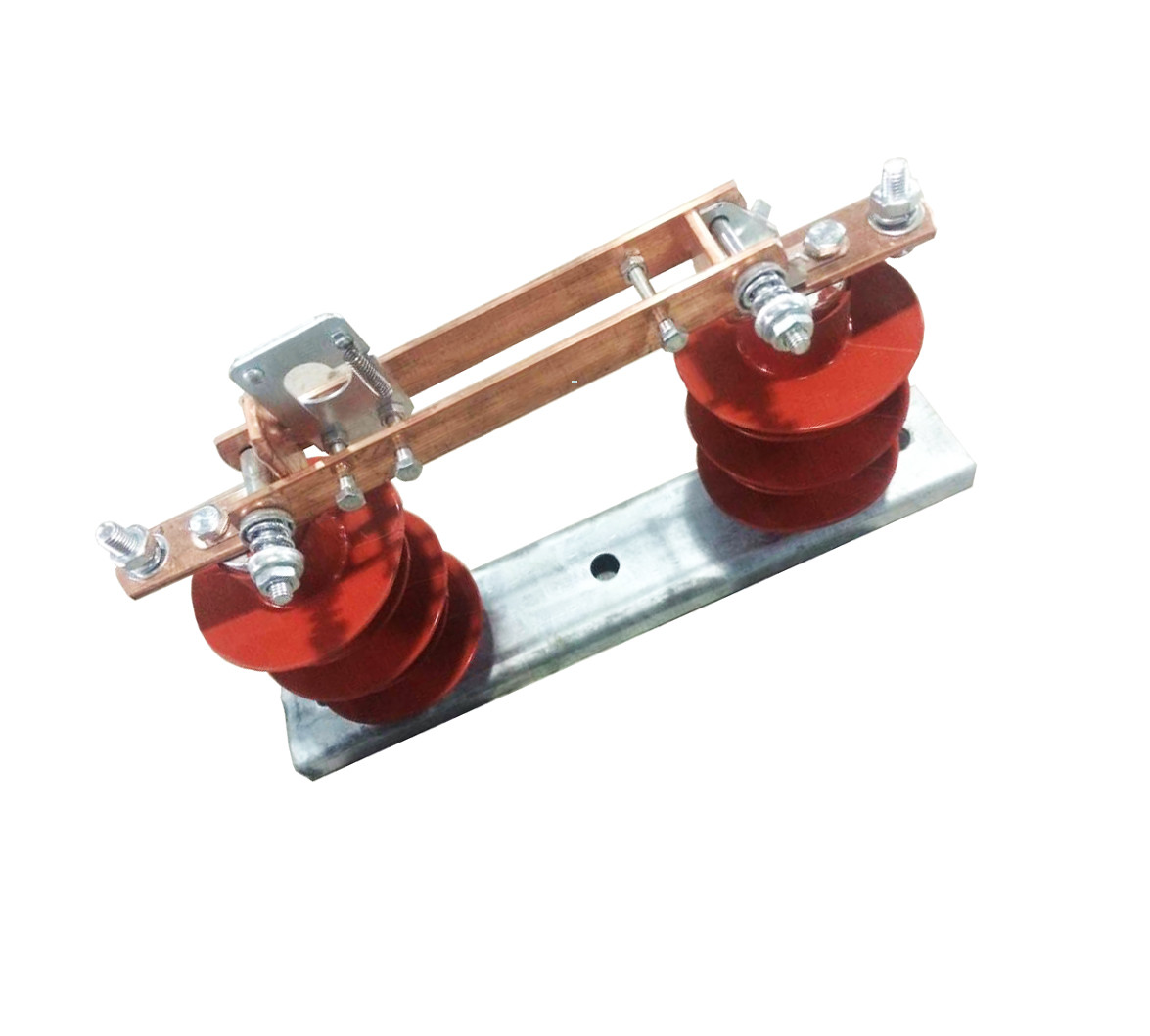

HGW2-0.5 type outdoor disconnect switch is used for opening and closing single phase or three phase circuits.
HGW2-0.5 type outdoor disconnect switch has simple structure, convenient price, simple use. It is composed of base, support insulator, electricity conductpart and mechanism. Using blade structure to open andclose circuit. Blade of each phase is composed of twoblades. There are compress springs on the two sides ofblades, to adjust for getting needed pressure. When open and close switch, use insulating bar operating mechanism. Blade have self-lock device.

a) Altitude above the sea: no more than 1000m;

b) Ambient temperature: upper limits+40℃,lower limits-30℃(high cold area lower limits-40°C);

c) Outdoor wind speed: not exceeding 35m/s;

d) Earthquake intensity: not exceeding 8 degree;

e) Occasions without severe vibration;
f) Occasion without matter which will badly influence the insulation performance and conductivity of disconnector, such as gas, steam, chemical sediment, salt fog, dust, and the other explosive and corrosive matters.
Technology performance of product accords with standards.

Features of HGW2- 0.5 outdoor disconnet switch:

• Product Name: Disconnect switch
• Rated Voltage: 0.5kV
• Rated Frequency: 50Hz
• Rated Peak Withstand Current: 500A,800A
• Port: Shanghai Or Other Port In China

Technical Parameters of HGW2- 0.5 outdoor disconnet switch:

Customization:
