HRW5-40.5kv High Voltage Fuse Cut Out / Drop Fuse Cutout

Place of Origin CN;SHA
Brand Name TID POWER
Certification ISO9001
Model Number HRW
Minimum Order Quantity 100 Piece/Pieces
Price Negotiate
Packaging Details Suitable packing for export: Cartons+Wooden cases+Pallets+Wrapping Film
Payment Terms L/C , T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Current 100A, 200A Rated Voltage 40.5kV
Material Composite /Polymer Insulation Level Fiberglass Resin Polyester
Parts Base,live And Fixed Contact, Fuse Tube P.F Dry Withstand Voltage 105 KV
P.F. Wet Withstand Voltage 185kV Allowed Temperature Rise Except Fuse Tube Live Parts 60 ℃
High Light

400mm Creepage Distance Fuse Cut Out

,

Fuse Cut Out Auto Blade

,

Auto Blade Drop Out Fuse Cutout

Product Description

HRW5-40.5kv High Voltage Fuse Cut Out / Drop Fuse Cutout



Product Description of HRW5-40.5kv High Voltage Fuse Cut Out / Drop Fuse Cutout:

Product Name: Fuse Cut Out, Drop Fuse Cutout
Rated Withstand Voltage: 40.5kV
Parts: Base, live and fixed contact, fuse tube
Port: Shanghai Or Other Port In China



Technical Parameters of 400mm creepage distance auto fuse cut out for high voltage:



Product Model HRW5-40.5/100 HRW5-40.5/200
Rated Voltage(kV) 40.5 40.5
Rated Current (A) 100 200
3-phase breaking capacity (VA) Up limit 400 800
Down Limit 10 30
P.F.Dry Withstand Voltage (kV) 105 105
P.F.Wet Withstand Voltage (kV) 185 185
Allowed temperature rise except fuse tube live parts(℃) 60 60

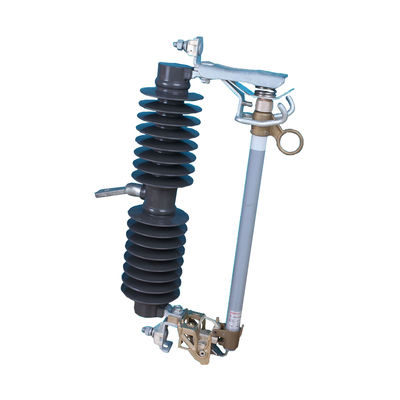

HRW5-40.5kv High Voltage Fuse Cut Out / Drop Fuse Cutout 0

Customization:

Fuse Cut Out from TID POWER offers the ultimate protection with a brand name and model number of TID-HRW and a place of origin of CN;SHA. It comes in either grey or a customizable color.



Technical Support and Service for Fuse Cut Out

Fuse Cut Out is a reliable and user-friendly product designed to protect electrical systems from overloading. Our team provides quality technical support and service to ensure that your product is working correctly and safely.

We provide technical support through phone, email, or online chat, and we are available 24/7 to answer any questions you have regarding installation, troubleshooting, and maintenance. Our experienced technicians can also provide advice on how to best use your product.

If you encounter any issues with your Fuse Cut Out, we will provide the necessary repairs or replacements free of charge. All you have to do is contact us and we will take care of it for you.

We are committed to providing you with the best technical support and service to ensure that your Fuse Cut Out is working properly and reliably. If you have any questions, please do not hesitate to contact us.



Packaging and Shipping Fuse Cut Out

Fuse Cut Out products must be packaged and shipped with care in order to protect them from damage caused by shipping and handling. Here are some tips to ensure safe delivery of these products:

  • Wrap the product in bubble wrap or foam padding for extra protection.
  • Use strong and durable shipping boxes that are large enough to fit the product with enough room for packing materials.
  • Secure all loose parts in the box with tape or packing material.
  • Label the box with the appropriate shipping information.
