High UV Resistance Epoxy Fiberglass Rod For Industrial Composite Insulator Rod
| Place of Origin | CN;SHA |
|---|---|
| Brand Name | TID POWER |
| Certification | ISO9001:2008 |
| Model Number | TECR |
| Minimum Order Quantity | 100 Meter/Meters |
| Price | Negotiate |
| Packaging Details | suitable packing for export,; 1.Inside packing: a plastic bag or woven belt 2.Outside packing: carton box and pallet. 3.According customer requirement. |
| Payment Terms | L/C , T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Impact | High Impact Resistance | Length | Various Lengths |
|---|---|---|---|
| Electrical | High Electrical Properties | UV | High UV Resistance |
| Strength | High Strength | Chemical | High Chemical Resistance |
| Surface | Smooth Or Rough | ||
| High Light | High UV Resistance Epoxy Fiberglass Rod,TID Epoxy Fiberglass Rod For Industrial,Industrial Composite Insulator Rod ISO |
||
Product Description
Product Description:

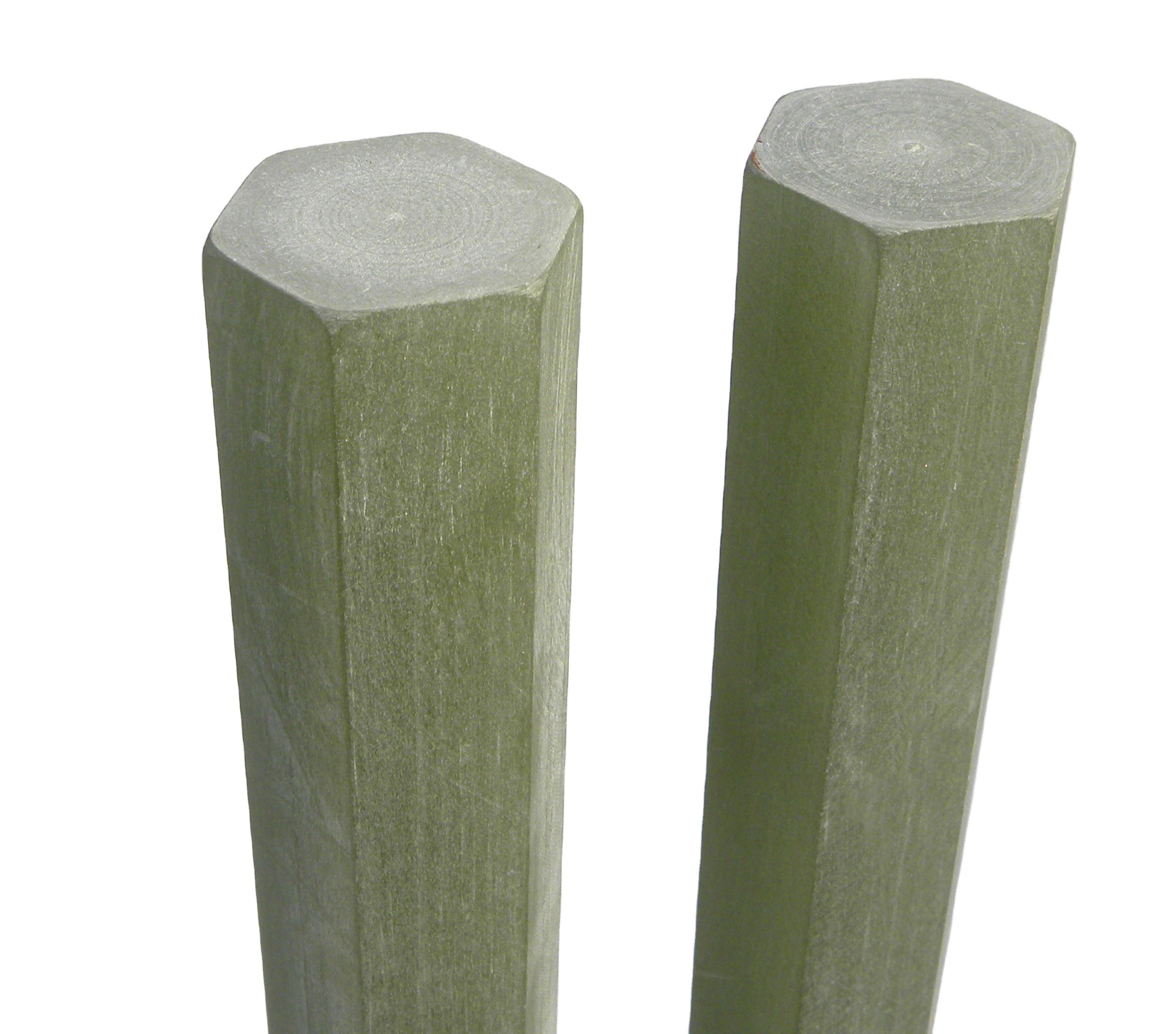

Epoxy Fiberglass Rod is a high-quality composite insulator, made from epoxy fiberglass material. It has a smooth surface and is highly corrosion resistant, making it perfect for a variety of applications. Our Epoxy Fiberglass Rods are available in various diameters and are designed to provide superior UV resistance. Additionally, we offer customized solutions to meet your specific needs.
Features:
Insulating Solid Rod is made of ECR glass reinforced epoxy resin.We use continuous pultrusion procss .The products fullfill The standard of IEC61109, IEC 60855 and GB13398.
Note:
1. Color: light green , brown or customized colors.
2. Length: according to Customer requirement.
3. We offer customized products,including the new size, New surface treatment, Jointing the fitting, screw or mechanical to other shapes.
Technical Parameters:
| No. | Technical specification | Unit | value |
| 1 | Density(20℃±2℃) | g/cm3 | ≥2.2 |
| 2 | Water absorption rate (20℃±2℃,24h) | % | ≤0.05 |
| 3 | Tensile strength | Mpa | ≥1200 |
| 4 | Bending strength | Mpa | ≥960 |
| 5 | Dye penetrated test | Min | ≥15 |
| 6 | Water diffusion test (1%NaCl, 100h 12kv/1min) | mA | ≤0.1 |
| 7 | Shearing strength along laminas | Mpa | ≥50 |
| 8 | Volume resistivity (140℃,96h) | Ω.M | ≥1010 |
| 9 | DC withstand voltage (10mm) | Kv | ≥50 |
| 10 | Lighting impulsed withstand voltage (100kv,10mm) | Times | ≥5 |
| 11 | Bending strength at heating conditions | Mpa/150℃ | ≥350 |
| 12 | Torsion strength | Mpa | ≥800 |
| 13 | Stress corrosion (1mol/1HNO3,at 67%stress) | h | 96 |
Packing and Shipping:
Packaging and Shipping of Epoxy Fiberglass Rod
Epoxy fiberglass rods are usually packaged in plastic bags and shipped in cardboard boxes. The plastic bags protect the rods from dust, dirt, and other contaminants. The cardboard boxes provide rigidity and protection from physical damage during shipping.
To ensure that the epoxy fiberglass rods arrive in perfect condition, we use industry-standard packaging materials and techniques. Our products are securely wrapped in protective bubble wrap or foam, and then placed inside a sturdy cardboard box with cushioning material. The box is then sealed with heavy-duty tape to prevent any damage during shipping.
We use reputable shipping companies to ensure that your order arrives on time and in perfect condition. All orders come with a tracking code, so you can monitor your package throughout its journey.
