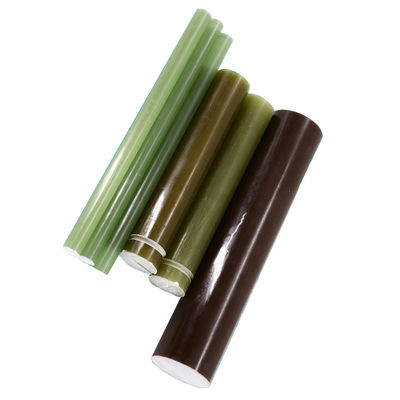

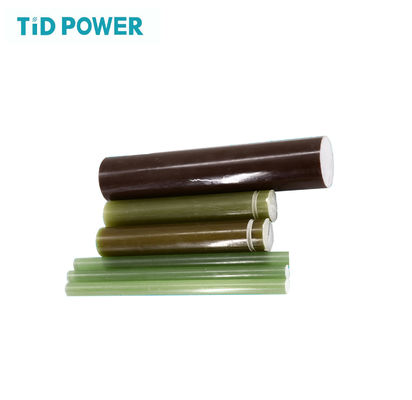

Dimensions 4mm-130mm Fiberglass Epoxy Resin Rod Brown Insulator Fittings Rod
| Place of Origin | CN;SHAAN XI |
|---|---|
| Brand Name | TID POWER |
| Certification | ISO9001:2008 |
| Model Number | TECR |
| Minimum Order Quantity | 100 Meter/Meters |
| Price | Negotiate |
| Packaging Details | suitable packing for export,; 1.Inside packing: a plastic bag or woven belt 2.Outside packing: carton box and pallet. 3.According customer requirement. |
| Payment Terms | L/C , T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Temperature Range | -40℃ To +120℃ | Shape | Round/ Square/ Rectangle |
|---|---|---|---|
| Thickness | Customized | Heat Resistance | High |
| Color | Green Or Brown | Length | Customized |
| Application | Composite Insulator/fuse Cut Out | Durability | High |
| High Light | 130mm Fiberglass Epoxy Resin Rod,4mm Fiberglass Epoxy Resin Rod,Brown Insulator Fittings Rod |
||
Product Description
Dimensions 4mm-130mm Green Or Brown Insulator Fittings fiberglass rod with Customized Length
Insulating Solid Rod is made of ECR glass reinforced epoxy resin.We use continuous pultrusion procss .The products fullfill The standard of IEC61109, IEC 60855 and GB13398.
Note:
1. Color: light green , brown or customized colors.
2. Length: according to Customer requirement.
3. We offer customized products,including the new size, New surface treatment, Jointing the fitting, screw or mechanical to other shapes.
Technical Parameters of Dimensions 4mm-130mm Green Or Brown Insulator Fittings fiberglass rod with Customized Length:
| No. | Technical specification | Unit | value |
| 1 | Density(20℃±2℃) | g/cm3 | ≥2.2 |
| 2 | Water absorption rate (20℃±2℃,24h) | % | ≤0.05 |
| 3 | Tensile strength | Mpa | ≥1200 |
| 4 | Bending strength | Mpa | ≥960 |
| 5 | Dye penetrated test | Min | ≥15 |
| 6 | Water diffusion test (1%NaCl, 100h 12kv/1min) | mA | ≤0.1 |
| 7 | Shearing strength along laminas | Mpa | ≥50 |
| 8 | Volume resistivity (140℃,96h) | Ω.M | ≥1010 |
| 9 | DC withstand voltage (10mm) | Kv | ≥50 |
| 10 | Lighting impulsed withstand voltage (100kv,10mm) | Times | ≥5 |
| 11 | Bending strength at heating conditions | Mpa/150℃ | ≥350 |
| 12 | Torsion strength | Mpa | ≥800 |
| 13 | Stress corrosion (1mol/1HNO3,at 67%stress) | h | 96 |
The size of Fibergalss Rods
| Products Code | D(mm) | L (mm) | Weight (kg) | Products Code | D(mm) | L (mm) | Weight (kg) |
| TECR00400 | Φ4 | 1000 | 0.028 | TECR03600 | φ36 | 1000 | 2.20 |
| TECR00450 | Φ4.5 | 1000 | 0.035 | TECR03800 | φ38 | 1000 | 2.46 |
| TECR00500 | Φ5 | 1000 | 0.05 | TECR04000 | φ40 | 1000 | 2.70 |
| TECR00550 | Φ5.5 | 1000 | 0.052 | TECR04100 | φ41 | 1000 | 2.84 |
| TECR00800 | Φ8 | 1000 | 0.11 | TECR04200 | Φ42 | 1000 | 2.99 |
| TECR01000 | Φ10 | 1000 | 0.17 | TECR04500 | φ45 | 1000 | 3.42 |
| TECR01200 | Φ12 | 1000 | 0.25 | TECR05000 | φ50 | 1000 | 4.28 |
| TECR01600 | φ16 | 1000 | 0.44 | TECR05300 | φ53 | 1000 | 4.75 |
| TECR01670 | Φ16.7 | 1000 | 0.49 | TECR05500 | φ55 | 1000 | 5.12 |
| TECR01748 | Φ17.48 | 1000 | 0.53 | TECR06000 | φ60 | 1000 | 6.10 |
| TECR01800 | φ18 | 1000 | 0.55 | TECR06350 | Φ63.5 | 1000 | 6.97 |
| TECR02000 | φ20 | 1000 | 0.69 | TECR06800 | φ68 | 1000 | 7.96 |
| TECR02200 | φ22 | 1000 | 0.83 | TECR07000 | φ70 | 1000 | 8.44 |
| TECR02400 | φ24 | 1000 | 0.99 | TECR07620 | Φ76.2 | 1000 | 10.15 |
| TECR02500 | φ25 | 1000 | 1.07 | TECR08000 | φ80 | 1000 | 10.90 |
| TECR02600 | φ26 | 1000 | 1.14 | TECR09000 | φ90 | 1000 | 14.24 |
| TECR02800 | φ28 | 1000 | 1.47 | TECR11000 | φ110 | 1000 | 21.36 |
| TECR03000 | φ30 | 1000 | 1.53 | TECR12000 | Φ120 | 1000 | 24.87 |
| TECR03200 | φ32 | 1000 | 1.76 | TECR13000 | Φ130 | 1000 | 29.65 |
| TECR03400 | φ34 | 1000 | 1.97 |
FAQ:
- Q: What is the brand and model number of the Insulator Fittings?
A: The brand name is TID POWER and the model number is TECR. - Q: Where is the Insulator Fittings manufactured?
A: It is manufactured in China (SHAAN XI). - Q: What is the minimum order quantity for the Insulator Fittings?
A: The minimum order quantity is 100 meter/meters. - Q: What kind of certifications do the Insulator Fittings have?
A: The Insulator Fittings are certified with ISO9001:2008. - Q: What type of payment methods are accepted for the Insulator Fittings?
A: We accept payment methods such as L/C, T/T,
