High Durable Epoxy Fiberglass Rod Insulation Fiberglass Product For Composite Insulators

Place of Origin CN;SHAAN XI
Brand Name TID POWER
Certification ISO9001:2008
Model Number TECR
Minimum Order Quantity 100 Meter/Meters
Price Negotiate
Packaging Details suitable packing for export,; 1.Inside packing: a plastic bag or woven belt 2.Outside packing: carton box and pallet. 3.According customer requirement.
Payment Terms L/C , T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Standard IEC61109 Dimensions 4mm-130mm
Material Epoxy Resin ,Fiberglass,Firming Agent Impact Resistance High
Thickness Customized Length Customized
Weight Customized Shape Round/ Square/ Rectangle
High Light

High Durable Epoxy Fiberglass Rod

,

Epoxy Fiberglass Rod Insulation

,

Insulation Fiberglass Product For Composite Insulators

Product Description

High Durable Epoxy Fiberglass Rod Insulation Fiberglass Product For Composite Insulators



Product Description:

Our Insulator Fittings/ Fiberglass Rod/ Rubber is highly durable and impact resistant, making it the perfect product for your insulation needs. The product is made of high quality epoxy resin, fiberglass, and firming agent, giving it an incredibly strong and reliable construction. It is available in a variety of shapes, from round to square and rectangle, and a range of colors from green to brown. Additionally, our rubber insulating joints, rubber stoppers, and fiberglass rod provide reliable insulation and protection. With these features, our Insulator Fittings/ Fiberglass Rod/ Rubber is a great choice for any insulation job.

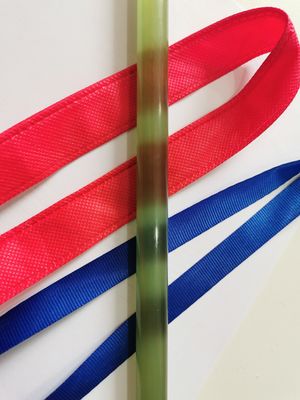

High Durable Epoxy Fiberglass Rod Insulation Fiberglass Product For Composite Insulators 0

Products Size

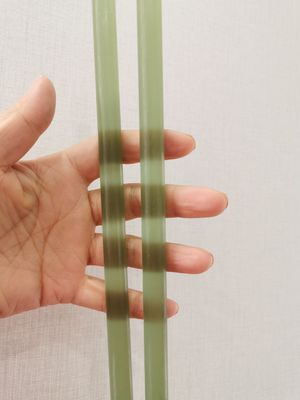

High Durable Epoxy Fiberglass Rod Insulation Fiberglass Product For Composite Insulators 1





产品编号Products Code D(mm) L (mm) 参考重量Weight (kg) 产品编号Products Code D(mm) L (mm) 参考重量Weight (kg)
TECR00400 Φ4 1000 0.028 TECR03600 φ36 1000 2.20
TECR00450 Φ4.5 1000 0.035 TECR03800 φ38 1000 2.46
TECR00500 Φ5 1000 0.05 TECR04000 φ40 1000 2.70
TECR00550 Φ5.5 1000 0.052 TECR04100 φ41 1000 2.84
TECR00800 Φ8 1000 0.11 TECR04200 Φ42 1000 2.99
TECR01000 Φ10 1000 0.17 TECR04500 φ45 1000 3.42
TECR01200 Φ12 1000 0.25 TECR05000 φ50 1000 4.28
TECR01600 φ16 1000 0.44 TECR05300 φ53 1000 4.75
TECR01670 Φ16.7 1000 0.49 TECR05500 φ55 1000 5.12
TECR01748 Φ17.48 1000 0.53 TECR06000 φ60 1000 6.10
TECR01800 φ18 1000 0.55 TECR06350 Φ63.5 1000 6.97
TECR02000 φ20 1000 0.69 TECR06800 φ68 1000 7.96
TECR02200 φ22 1000 0.83 TECR07000 φ70 1000 8.44
TECR02400 φ24 1000 0.99 TECR07620 Φ76.2 1000 10.15
TECR02500 φ25 1000 1.07 TECR08000 φ80 1000 10.90
TECR02600 φ26 1000 1.14 TECR09000 φ90 1000 14.24
TECR02800 φ28 1000 1.47 TECR11000 φ110 1000 21.36
TECR03000 φ30 1000 1.53 TECR12000 Φ120 1000 24.87
TECR03200 φ32 1000 1.76 TECR13000 Φ130 1000 29.65
TECR03400 φ34 1000 1.97


Features:

  • Product Name: Insulator Fittings/ Fiberglass Rod/ Rubber
  • Material: Epoxy Resin, Fiberglass, Firming Agent
  • Length: Customized
  • Standard: IEC61109
  • Heat Resistance: High
  • Dimensions: 4mm-130mm
  • Insulation Accessories: Excellent Insulation Properties


Technical Parameters:



No. Technical specification Unit value
1 Density(20℃±2℃) g/cm3 ≥2.2
2 Water absorption rate (20℃±2℃,24h) % ≤0.05
3 Tensile strength Mpa ≥1200
4 Bending strength Mpa ≥960
5 Dye penetrated test Min ≥15
6 Water diffusion test (1%NaCl, 100h 12kv/1min) mA ≤0.1
7 Shearing strength along laminas Mpa ≥50
8 Volume resistivity (140℃,96h) Ω.M ≥1010
9 DC withstand voltage (10mm) Kv ≥50
10 Lighting impulsed withstand voltage (100kv,10mm) Times ≥5
11 Bending strength at heating conditions Mpa/150℃ ≥350
12 Torsion strength Mpa ≥800
13 Stress corrosion (1mol/1HNO3,at 67%stress) h 96



Applications:



TID POWER's Insulator Fittings/ Fiberglass Rod/ Rubber is ideal for electrical insulation, anti-corrosion and mechanical protection applications. With its high quality and ISO9001:2008 certification, it is designed to withstand extreme temperatures ranging from -40℃ to +120℃ with an excellent heat and impact resistance. It is made of epoxy resin, fiberglass and firming agent, providing superior strength and flexibility. Plus, its length is customizable to meet customers' specific needs.

This insulation product is widely used in the power industry, such as for electric wires, cables, motors, transformers, and other electric components. It is also suitable for various applications in the high-voltage engineering, such as high-voltage switchgear and substations. With its reliable performance, it is able to protect against electric shock and fire hazards.




Support and Services:



Technical Support and Service for Insulator Fittings/ Fiberglass Rod/ Rubber

We offer technical support and service for our Insulator Fittings/ Fiberglass Rod/ Rubber products. Our experienced technical team can provide assistance in all areas related to product selection, installation, operation and maintenance. We provide a range of services including:

  • On-site technical advice and assistance
  • Troubleshooting and technical problem solving
  • Technical training and product seminars
  • In-house product testing and certification
  • Design and engineering services
  • Product selection and specification
  • Repair and maintenance services

For more information on our technical support and service for Insulator Fittings/ Fiberglass Rod/ Rubber, please contact us.



Packing and Shipping:

Packaging and Shipping for Insulator Fittings/Fiberglass Rod/Rubber

Insulator Fittings/Fiberglass Rod/Rubber products should be packaged in accordance with the requirements of the customer. It should be packed in a corrugated cardboard box or a wooden box, with a cushioning material inside to protect the product from damage in transit.

Shipping of the Insulator Fittings/Fiberglass Rod/Rubber should be done via a reliable and trusted carrier. The customer should be provided with the tracking details and an estimated delivery date.
