Customized Fiberglass Epoxy Resin Rod Composite Insulator Rod For Fuse Cut Out /Surge Arrester

Place of Origin CN;SHAAN XI
Brand Name TID POWER
Certification ISO9001:2008
Model Number TECR
Minimum Order Quantity 100 Meter/Meters
Price Negotiate
Packaging Details suitable packing for export,; 1.Inside packing: a plastic bag or woven belt 2.Outside packing: carton box and pallet. 3.According customer requirement.
Payment Terms L/C ,T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Composite Insulator/fuse Cut Out/Composite Insulator Dimensions 4mm-130mm
Color Green Or Brown Standard IEC61109
Material Epoxy Resin ,Fiberglass,Firming Agent Port Shanghai Or Other Port In China
Thickness Customized Weight Light Weight
Highlight

Customized Fiberglass Epoxy Resin Rod

,

Composite Insulator Rod Fuse Cut Out

,

Fiberglass Epoxy Resin Rod Surge Arrester

Product Description

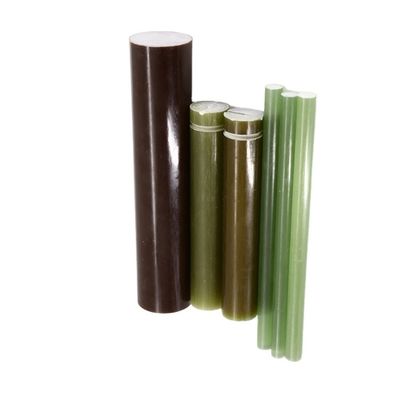

Customized Epoxy Fiberglass Rod For Composite Insulator/Fuse Cut Out

Product:

1.Product Description of green or brown epoxy fiberglass rod for composite insulator/fuse cut out applications:

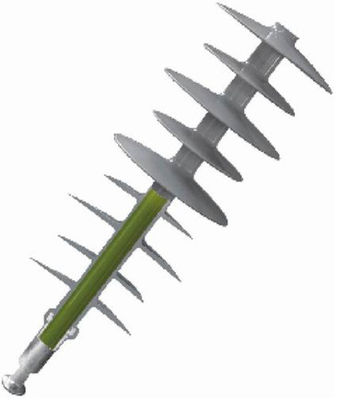

Fiberglass Cord Rod is made through glass fiber yarn soaking in epoxy compound glue,and passing the vacuum injection, continuous pulling and pressing, and being solidified.They have good insulation performance and tension strength.FRP rod are widely used for high voltage line,freeway; tunnel; railway station; underground engineering;sewage treatment plants etc.


Fiberglass rods have many advantages, including high strength, lightweight, and corrosion resistance2. Features and Application of fiberglass rods:

Technical Parameters:

No.Technical specificationUnitvalue
1Density(20℃±2℃)g/cm3≥2.2
2Water absorption rate (20℃±2℃,24h)%≤0.05
3Tensile strengthMpa≥1200
4Bending strengthMpa≥960
5Dye penetrated testMin≥15
6Water diffusion test (1%NaCl, 100h 12kv/1min)mA≤0.1
7Shearing strength along laminasMpa≥50
8Volume resistivity (140℃,96h)Ω.M≥1010
9DC withstand voltage (10mm)Kv≥50
10Lighting impulsed withstand voltage (100kv,10mm)Times≥5
11Bending strength at heating conditionsMpa/150℃≥350
12Torsion strengthMpa≥800
13Stress corrosion (1mol/1HNO3,at 67%stress)h96

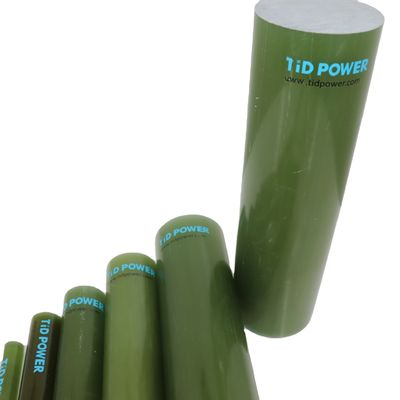

3. More detail information for customized epoxy resin fiberglass rod for composite insulator fuse cut out surge arrester

Customized Fiberglass Epoxy Resin Rod Composite Insulator Rod For Fuse Cut Out /Surge Arrester 0

   1 - Continuous roll of reinforced fibers/woven fiber mat
   2 - Tension roller
   3 - Resin Impregnator
   4 - Resin soaked fiber
   5 - Die and heat source
   6 - Pull mechanism
   7 - Finished hardened fiber reinforced polymer


Support and Services:
We provide technical support and services for Insulator Fittings/ Fiberglass Rod/ Rubber. Our technical support team can answer any questions you may have about these products. They can provide advice on installation, troubleshooting, and maintenance. We also offer a warranty on all our products. If any of our products fail due to manufacturing defects, we will replace them free of charge. Finally, we are always available to answer any additional questions you may have.

Packing and Shipping:
Insulator Fittings/ Fiberglass Rod/ Rubber Packaging and Shipping:
Insulator Fittings: Packaged in cardboard boxes, wrapped in plastic wrap and secured with tape.
Fiberglass Rod: Wrapped in plastic bubble wrap and placed in cardboard boxes.
Rubber: Placed in cardboard boxes lined with plastic wrap.
All items will be shipped via UPS or other courier services.
