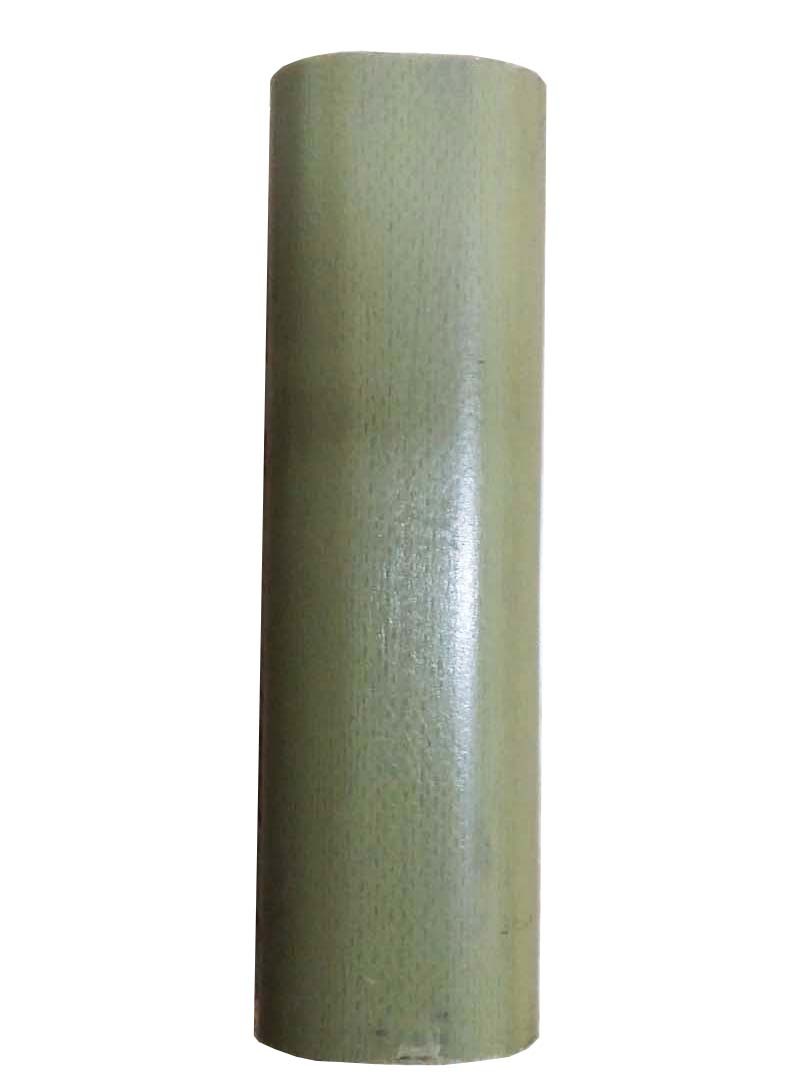

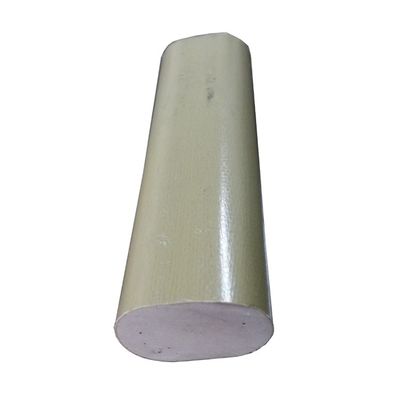

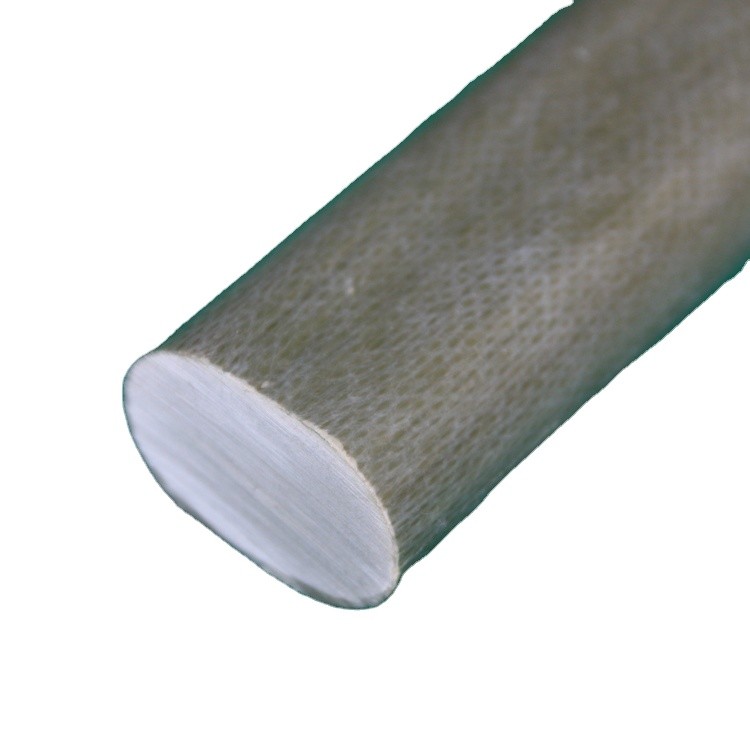

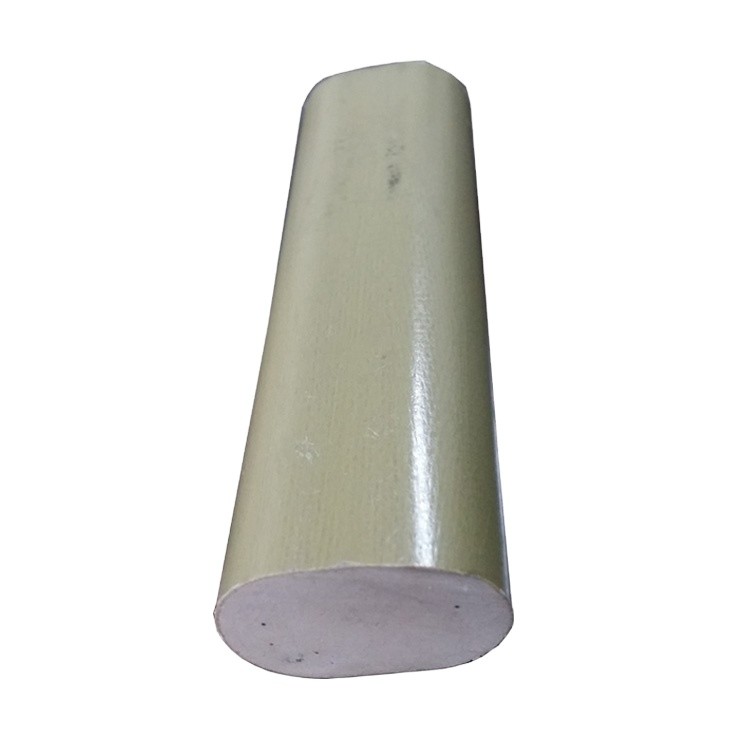

Epoxy Resin Fiberglass Rod For Composite Insulator Epoxy Fiberglass Pole

Place of Origin CN;SHAAN XI
Brand Name TID POWER
Certification ISO9001:2008
Model Number /
Minimum Order Quantity 100 Meter/Meters
Price Negotiate
Packaging Details suitable packing for export,; 1.Inside packing: a plastic bag or woven belt 2.Outside packing: carton box and pallet. 3.According customer requirement.
Payment Terms L/C ,T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Insulator/fuse Cut Out/surge Arrester Diameter 4mm-130mm
Color Green ,gray, Brown Certificate ISO 9001
Material Epoxy Resin ,Fiberglass,Firming Agent Weight Light Weight
High Light

Uv Resistance Epoxy Fiberglass Rod 4mm

,

Epoxy Fiberglass Rod Composite

,

4mm Composite Insulator Epoxy Fiberglass Pole

Product Description

High Quanlity UV Resistance Epoxy Resin Fiberglass Pole For Composite Insulator Fuse Cut Out Surge Arrester



Product:



1.Product Description of high quanlity uv resistance epoxy resin fiberglass pole for composite insulator fuse cut out surge arrester



UV resistant Fiberglass rod is a material with the ability to resist UV radiation. It is usually made of fiberglass reinforced resin and achieves UV resistance by adding special UV absorbers or UV stabilizers to the resin



2. Technical Parameters of high quanlity uv resistance epoxy resin fiberglass pole for composite insulator fuse cut out surge arrester



No. Technical specification Unit value
1 Density(20℃±2℃) g/cm3 ≥2.2
2 Water absorption rate (20℃±2℃,24h) % ≤0.05
3 Tensile strength Mpa ≥1200
4 Bending strength Mpa ≥960
5 Dye penetrated test Min ≥15
6 Water diffusion test (1%NaCl, 100h 12kv/1min) mA ≤0.1
7 Shearing strength along laminas Mpa ≥50
8 Volume resistivity (140℃,96h) Ω.M ≥1010
9 DC withstand voltage (10mm) Kv ≥50
10 Lighting impulsed withstand voltage (100kv,10mm) Times ≥5
11 Bending strength at heating conditions Mpa/150℃ ≥350
12 Torsion strength Mpa ≥800
13 Stress corrosion (1mol/1HNO3,at 67%stress) h 96



3. Application of high quanlity uv resistance epoxy resin fiberglass pole for composite insulator fuse cut out surge arrester



nsulation material: UV resistant glass fiber can be used as insulation material for power equipment and wires and cables. They have excellent electrical insulation performance and weather resistance, which can effectively isolate current and prevent damage to power equipment from ultraviolet radiation.



Reinforced structure: In power transmission lines and power towers, UV resistant glass fibers can be used to enhance the strength and stability of the structure. They have high strength and durability, providing additional support and protection to ensure that transmission lines and power towers can withstand harsh environmental conditions and ultraviolet radiation.



Insulation material: In power equipment and power stations, UV resistant glass fiber can be used as insulation material to reduce energy loss and heat conduction. They have good insulation performance and can help improve the efficiency and performance of power equipment.



Epoxy Resin Fiberglass Rod For Composite Insulator Epoxy Fiberglass Pole 0

Packing and Shipping:

Insulator Fittings/ Fiberglass Rod/ Rubber Packaging and Shipping:

Insulator Fittings: Packaged in cardboard boxes, wrapped in plastic wrap and secured with tape.

Fiberglass Rod: Wrapped in plastic bubble wrap and placed in cardboard boxes.

Rubber: Placed in cardboard boxes lined with plastic wrap.

All items will be shipped via UPS or other courier services.
